Atomos MasterCaddy 4K RAW 500GB by Angelbird - AB-4KRAWATOM500

Zoom Out
Zoom In

Rollover image to zoom

Angelbird
SKU: AB-4KRAWATOM500

Atomos MasterCaddy 4K RAW 500GB by Angelbird - AB-4KRAWATOM500

£384.00 (inc VAT) £320.00 (exc VAT)

In stock Delivery in 1-2 working days - In stock with supplier

Seen it cheaper? more

Atomos MasterCaddy 4K RAW 500GB by Angelbird - AB-4KRAWATOM500

Angelbird ATOMOS MasterCaddy 4K RAW 500GB


DEVELOPED EXCLUSIVELY FOR ATOMOS 4K RAW WORKFLOWS.

Ready for anything your Atomos recorder can throw at it. Records high frame rates and raw CDNG files with ease, thanks to the unique feature set and its sustained write speed up to 510MB/s.

NOTE:
For full compatibility please ensure that your Atomos recorder is upgraded to at least firmware V8.1.



AUTHORIZED ACCESSORY

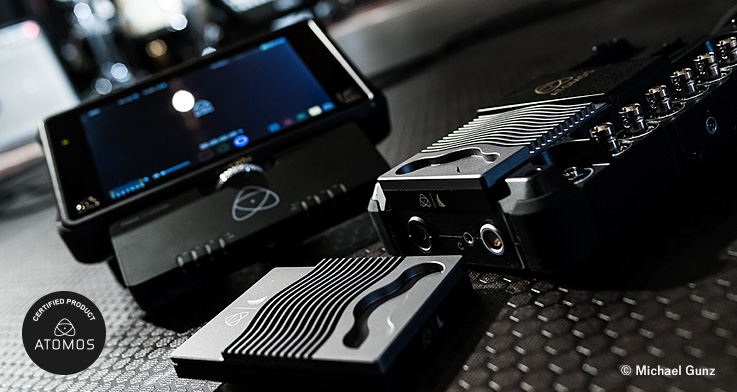

The Master Caddy 4K RAW is a custom designed SSD for Atomos products that integrates the Master Caddy rails into a rock solid aluminium body, quick grip release and unique Angelbird Stable Stream™ design for recording high data rate CDNG RAW and 4Kp60 video recordings.

Key Features

FEATURES

fastSustained read 560 MB/s
Sustained write 520 MB/s
capacity icon500GB | 1TB | 2TB | 4TB
stable stream iconStable Stream™
Rock-solid build icon4K60P | HD240
4K30P | CDNG
host power loss protection iconHost power loss protection
video photo audio iconDeveloped for ATOMOS
shock temperature proof iconPower smoothing
shock temperature proof iconShock &
temperature proof
X-ray & magnetic proofX-ray &
magnetic proof
ESD & overload protection iconESD & overload
protection
Adaptive thermal protection iconAdaptive thermal
protection
Rock-solid build iconCNC worked
aluminium heatsink
Rock-solid build iconRock-solid build
video photo audio iconMedia Pouch for:
1 x 4K RAW | 2 x CFast / CF | 3 x SD
CNC-worked, aluminium heatsink icon3-year limited warranty








SPECIFICATIONS

General

CAPACITY500GB | 1TB | 2TB | 4TB
FORM FACTORATOMOS MASTERCADDY 4K RAW
Compatible with *
DIMENSIONS104 x 75.5 x 11.7 mm (4.09 × 2.97 x 0.46 inch)
WEIGHT~ 220.0 g | ~ 7.7 oz

Performance

SUSTAINED READ SPEED1560 MB/s
SUSTAINED WRITE SPEED1520 MB/s
ACCESS TIME (R/W)~ 65 µs | 40 µs

Reliability

MTBF2,400,000 hours
DATA RELIABILITYBuilt-in EDC | ECC function
DATA RETENTION10 years at 25°
ENDURANCE
512 GB: up to 1,500 TBW
1 TB: up to 3,000 TBW
2 TB: up to 6,000 TBW
4 TB: up to 12,000 TBW
CERTIFICATIONSRoHS, CE and FCC compliant, REACH

Electrical

DC INPUT VOLTAGE5V ± 10%
POWER USAGE (IDLE/MAX)
512 GB: 1.35W / 4.7W
1 TB: 1.35W / 5.4W
2 TB: 1.80W / 5.4W
4 TB: 1.80W / 5.4W

Technical

INTERFACESATA 6Gb/s, 3Gb/s and 1.5Gb/s supported,
SATA 3.0 compliant
OVER PROVISIONING~ 9 %
FEATURESTemperature sensor, overload protection, TRIM, ECC, EMS protection, built-in cache, SMART, NCQ, adaptive thermal protection

Environmental

SHOCK RESITANCE (OPERATING)1000 G/0.5ms
VIBRATION RESISTANCE (OPERATING)2.17 GRMS
OPERATING TEMPERATURE-20 °C ~ +105 °C
STORAGE TEMPERATURE–40 °C ~ +85 °C
OPERATING HUMIDITY5 % to 95 % non-condensing

*Compatibility list

SUMO | SHOGUN | SHOGUN INFERNO | SHOGUN FLAME | SHOGUN STUDIO | NINJA FLAME | NINJA ASSASSIN


Package content

• ATOMOS 4K RAW
• Media Pouch for 1 x 4K RAW | 2 x CFast / CF | 3 x SD
• Activation code for the full limited warranty and additional free software licenses and content

Warranty2

3-year limited warranty


1 ... Measured with ATTO Benchmark Tool 3.05
2 ... To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
