AJA OG-UDC openGear 3G-SDI Up Down Cross-Converter

£851.40 £709.50
Call for Lead Time on this Product
SKU
OG-UDC

AJA OG-UDC openGear 3G-SDI Up Down Cross-Converter

OG-UDC is an openGear 10-bit broadcast quality up, down, cross-converter that bridges HD and SD video resolutions. The OG-UDC provides 3G-SDI input and output, HDMI output and two 3-pin terminal block connectors for analogue audio Outputs.

Designed for use in high-density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard Software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

FEATURES
openGear compatible card
Converts between SD, HD, and 3G HD formats
Supports 1080p50/60
Controlled by DashBoard network control software and external DIP switch
2x 3-Pin Terminal Block connectors (included)
16-channel embedded SDI audio input and output
Reference Input
Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames
Five-year warranty
NOTE:
OG-UDC supports 3G-SDI Level A only. 3G-SDI Level B is not supported.
OG-UDC passes-through embedded audio ancillary data only. It does not pass through other types of embedded ancillary data.

SPECIFICATIONS


Video Formats
(HD) 1920 x 1080p
(HD) 1920 x 1080PsF
(HD) 1920 x 1080i
(HD) 1280 x 720p
(SD) 720 x 625i
(SD) 720 x 576i
(SD) 720 x 480i
Video Input Digital
1x 3G-SDI BNC, SMPTE-259/292/372/424
(HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
(HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
(HD) 1920 x 1080i 50, 59.94, 60
(HD) 1280 x 720p 50, 59.94, 60
(SD) 720 x 576i 50, 59.94, 60
Video Output Digital
1x 3G-SDI BNC, SMPTE-259/292/372/424
(HD) 1080p 23.98 (for 23.98 video inputs)
(HD) 1080p 24 (for 24 video inputs)
(HD) 1080p 25 (for 50 video inputs)
(HD) 1080p 29.97 (for 59.94 video inputs)
(HD) 1080p 30 (for 60 video inputs)
(HD) 1080p 50 (for 50 video inputs)
(HD) 1080p 59.94 (for 23.98, 59.94 video inputs)
(HD) 1080p 60 (for 24, 30 or 60 video inputs)
(HD) 1080PsF 23.98 (for 23.98 video inputs)
(HD) 1080PsF 24 (for 24 video inputs)
(HD) 1080PsF 25 (for 50 video inputs)
(HD) 1080PsF 29.97 (for 59.94 video inputs)
(HD) 1080Psf 30 (for 30 or 60 video inputs)
(HD) 1080i 59.94 (for 23.98, or 59.94 video inputs)
(HD) 1080i 60 (for 24, 30, or 60 video inputs)
(HD) 1080i 50 (for 25 or 50 video inputs)
(HD) 720p 50 (for 50 video inputs)
(HD) 720p 59.94 (for 23.98, 59.94 video inputs)
(HD) 720p 60 (for 24, 30, or 60 video inputs)
(SD) 625i 50 (for 25 or 50 fps video inputs)
(SD) 525i 59.94 (for 23.98 or 59.94 video inputs)
Reference Source
Free Run
Ext Ref
Reference Input
Supported reference video inputs include
1080i tri-level sync
1080p tri-level sync
720p tri-level sync
625i Color Black
525i Color Black
75-ohm terminating
HDMI Output
10-bit HDMI v1.4a
Audio I/O
16-channel embedded SDI audio input
16-channel embedded SDI audio output
8-channel HDMI audio output
Balanced analog audio outputs, 2x 3-Pin terminal block connectors
Ancillary Data
Supports pass-through of PCM embedded audio
Supports pass-through of non-PCM audio when source is in time with the selected ref (SDI In or Ext Ref). Non-PCM audio is not supported during frame sync operation.
All other ANC data is stripped
User Controls
External DIP switch
openGear DashBoard network control software via Windows, macOS or Linux
Size (w x d x h)
openGear standard form factor, front slot and rear card. Two slots required for each card.
Weight
0.5 lb (0.3 kg)
Power
openGear frame compatible, 7.0 watts max per card
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)

AJA Hardware Conversion Technology
AJA's powerful hardware conversion technology ensures the highest image quality for your productions. Key conversion features include:

SD/HD up/down-conversion
SD/SD aspect ratio conversion
HD/HD cross-conversion (720p/1080i)
Up/down/cross-conversion with both the input and converted formats on SD/HD SDI outputs (both synchronized)
OG-UDC can up or down-convert between SD, HD, and 3G HD (1080p50/60), and cross-convert between HD formats including 3G HD.

openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.


Flexible I/O

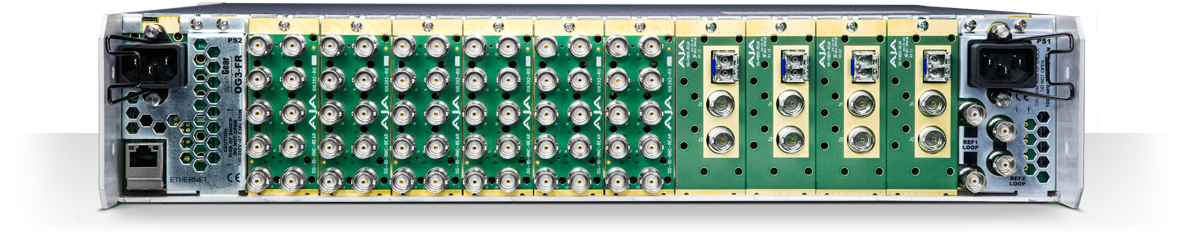

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.


DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.


AJA Mini-Matrix
Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA products are extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.


Industry Leading Support
AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
