AJA Bridge Live 12G Multi-Channel Encoding Decoding Streaming and Transcoding for Live Video - BLVE-12G4-S01

High Perfomance Multi-Channel Video Encoding, Decoding, Streaming and Trranscoding for Live Video all in a convient 1RU Rack Mount perfect for all your Broadcast and OB needs.

A turnkey 1RU solution featuring deep metadata support, BRIDGE LIVE simplifies the transport of UltraHD or multi-channel HD video between uncompressed baseband SDI to/from a wide range of streaming and contribution codecs (H.265, H.264, MPEG-2 and JPEG 2000) in real-time.

Preorder
Cashback
£15,594.00 £12,995.00
Free Delivery
1

AJA Bridge Live 12G High Performance Multi-Channel Video Encoding Decoding Streaming and Transcoding for Live Video - BLVE-12G4-S01

FEATURES

  • Beautiful, easy to use, and field-proven software tools from Comprimato
  • SDI encode or decode for one channel of UltraHD up to 60p, or up to four channels of 1080 60p HD via four 12G-SDI connections, that is compatible with 6G/3G-SDI
  • Multiple stream outputs can be generated, or multiple destinations reached, from each channel of SDI Input
  • Broad support for a range of encoding, decoding and transcoding codecs, including H.264 (AVC, MPEG-4), H.265 (HEVC) and MPEG-2, with an optional add-on for JPEG 2000 (VSF TR01) with 4:2:2, 10-bit/8-bit and 4:2:0 10-bit/8-bit colour component sampling
  • Robust video streaming with protocol support for RTMP, RTMPS, SRT (encryption available) and MPEG-TS, plus ABR ladder profiles and handoff for OTT packaging
  • Comprehensive metadata support, including closed captioning/subtitles (EIA-608/708), line 21 captions, metadata pass-through, ad insertion markers (SCTE-35/SCTE-104), MPEG-2 ancillary packet (SMPTE 2038), and subtitles embedded within H.264 SEI messages
  • Video processing tools, including auto colour component sampling, cropping/padding, colour adjustments, deinterlacing and 50% frame rate adjustments, logo insertion and resizing
  • Extensive audio compatibility, including AAC, AC3, MPEG-2 audio and uncompressed PCM (SMPTE 302M-2007)
  • 16-channels of embedded audio I/O per connection, with 16- and 24-bit quality, 48 kHz sample rate, synchronous
  • High-density 1RU design with dual redundant power supplies (100-240 VAC 50/60 Hz), four full-size BNC connectors, and dual 10GbE onboard NICs for network connectivity
  • Remote configuration, monitoring and management via web-browser, REST API and SNMP access and control
  • Local configuration, monitoring and management via DisplayPort and USB
  • AJA three-year warranty

BRIDGE LIVE is a turnkey solution built for critical streaming applications with high-performance 12G-SDI video encoding/decoding, stream-based transcoding, flexible I/O, comprehensive metadata support, closed caption support and all within a compact 1RU form factor with redundant power supplies.

Designed with the ability to support both low-latency and high-quality workflows across a range of codecs, containers, and protocols, BRIDGE LIVE enables numerous use cases; multi-input live streaming to platforms such as YouTube, Facebook, or Twitch, providing high-quality reference video for remote collaboration in production and post, backhauling remote live SDI video sources to the media production facility, SDI to MPEG-TS conversions for Telcos/IPTV/Cable networks, through to encoding for content distribution with ABR ladder profiles or hand-off for OTT packaging, and all supported via the public internet.

*plus optional annual maintenance and feature-set extensions

Video Overview

Watch this video to learn more about BRIDGE LIVE. It includes a look at real-time encode, decode, and transform capabilities of BRIDGE LIVE between 12G-SDI sources and destinations. BRIDGE LIVE offers codecs from H.265, H.264, H.262 (MPEG2-TS) to optional JPEG 2000 using a variety of transport protocols including SRT for secure and reliable transport needs.

AJA and Comprimato

BRIDGE LIVE represents an exciting partnership between AJA and Comprimato, both long-standing industry innovators. The merging of AJA’s hardware development and video I/O expertise with Comprimato’s transcoding and internet transport know-how means customers can expect the versatility, speed and quality needed for that competitive edge. The unique fusion of company talent between AJA and Comprimato ensures that BRIDGE LIVE delivers the performance and reliability needed for live H.265 (HEVC), H.264 (AVC, MPEG-4), H.262 (MPEG-2) and JPEG 2000* encode, decode, or transcode needs.

*Full H.265, H.264, H.262 I/O functionality included with BRIDGE LIVE turnkey system, JPEG 2000 I/O license options available.


Hardware

BRIDGE LIVE supports up to 4x 3G-SDI simultaneously, or 1x 12G-SDI connections yielding 4 HD channels or 1 UltraHD channel of SDI video I/O in 1RU. Dual 10GigE Ethernet ports provide network connectivity and dual power supplies provide peace of mind.

Administration, monitoring and access to BRIDGE LIVE is supported via either network browser or local Display Port. Indirect agnostic monitoring and automation is supported via both REST API and SNMP.

Metadata and Closed Caption Support

BRIDGE LIVE fully supports both closed captioning and additional metadata which is often a neglected feature set with lower cost encoding devices.

BRIDGE LIVE supports:

  • SCTE-35/SCTE-104 Ad insertion markers and conversion

  • CEA-608/CEA-708 Closed Captioning including conversion

  • Embedding Closed Captioning/Subtitles into H.264 SEI messages

  • Metadata pass through

  • MPEG-2 ancillary packet support, SMPTE 2038

  • Electronic Program Guide (EPG) on input

Transport, Encoding and Delivery

BRIDGE LIVE can be configured for low latency or high quality tasks. Depending on configuration, latency can be as low as 200ms. And, BRIDGE LIVE naturally gives you the tools to move content and deliver according to your workflow needs.

BRIDGE LIVE supports:

  • RTMP, RTMPS

  • RTP, UDP

  • SRT (plus encryption)

  • MPEG Transport Stream

  • ABR Ladder Profiles

  • Hand-off for OTT packaging

Supported Encodes/Decodes

BRIDGE LIVE supports the following configurations for encoding and decoding between SDI and streaming formats as standard. Multiple streams/formats/destinations can be derived from a single SDI input.

H.265 (HEVC):

  • 8-bit or 10-bit
  • 4:2:0
  • Up to 4 simultaneous 60p HD encodes/decodes or 1x 60p UltraHD encode/decode to/from SDI
  • SRT, RTMP and MPEG-TS protocol support

H.264 (AVC):

  • 8-bit or 10-bit
  • 4:2:0 or 4:2:2
  • Up to 4 simultaneous 60p HD encodes/decodes or 1x 60p UltraHD encode/decode to/from SDI with an HQ option*
  • SRT, RTMP and MPEG-TS protocol support

H.262 (MPEG-2):

  • 8-bit
  • 4:2:0
  • Up to 4 simultaneous 30p/60i HD encodes/decodes or up to 2 simultaneous 60p HD encodes/decodes to/from SDI with an HQ option
  • SRT, RTMP and MPEG-TS protocol support

*H.264 HQ selection limited to 30p maximum for HD and UltraHD

Optional JPEG 2000 VSF TR-01 Encode/Decode License

BRIDGE LIVE capabilities can be expanded to include high quality JPEG 2000 encoding and decoding.

JPEG 2000 (TR-01)

  • 10-bit
  • 4:2:2
  • Up to 4 simultaneous 60p HD encodes (80-220Mbps) or 1x 60p UltraHD encode/decode (up to 800Mbs)
  • SRT and MPEG-TS protocol support

Live Direct-to-Audience Streaming

BRIDGE LIVE offers a comprehensive platform for live video streaming. Streaming support includes SRT, RTMP/S, RTP/UDP, and MPEG-TS. Using these standard protocols provides wide support for streaming services from Twitch, YouTube Live and Facebook Live. BRIDGE LIVE builds upon the tried and tested approach of AJA’s HELO streaming device, while including flexibility for multiple inputs, broad format and bit-rate support, as well as metadata and redundancy.

And, while streaming to CDNs for a direct-to-audience delivery, BRIDGE LIVE can simultaneously deliver different stream types to partners to re-transmit, transcode, or store.

Download Workflow

Reference Video for Remote Collaboration

Production and Post: Connecting remote artists and clients using reference quality video, or providing a high quality window into production for those who cannot be on-set.

BRIDGE LIVE means the flexibility to leave media and equipment at the secure, managed facility, and have creative talent work together remotely with reference quality video.

BRIDGE LIVE compliments existing GUI driving technologies (e.g. RDP, Teradici) by layering on the reference quality video needed for creative confidence and client/executive sign-off. Choices between H.265 (4:2:0, 10-bit), H.264 (4:2:2, 10-bit) with turnkey BRIDGE LIVE, or via optional license JPEG 2000 (4:2:2, 10-bit), mean there is choice and flexibility in how to approach your needs in terms of quality and latency.

Download Workflow

Encoding For Remote Production

BRIDGE LIVE also offers the flexibility to tap video from on-set recording devices and stream the output of cameras (over a secure private line with encryption) providing a high quality window into production for those who cannot be on-set.

Download Workflow

Remote Video Transport and Contribution

For Broadcast, BRIDGE LIVE provides an efficient mechanism for backhauling remote live SDI video sources to the media production facility, in order to be converted back to SDI and made available on the internal facility SDI router for ongoing production/transmission.

Traditional secure lines for remote production can be very expensive, with additional fees being levied for time before and after a production starts and ends. BRIDGE LIVE allows source cameras and local program out to be transported using publicly available internet, with no penalty for early or extended use during a production. BRIDGE LIVE also offers lower latency than traditional secure lines for time critical productions.

Download Workflow

Live Production Encoding

Telcos, IPTV and cable operators are often presented with an SDI source or a live event or live production, which is needed as a simple MPEG-Transport Stream with H.264/H.262 encode. The delivered stream may be required for further processing (storage, production), or else be streamed directly to an IPTV/Cable network.

Download Workflow

Encoding For Content Distribution

For Studios and Broadcast applications BRIDGE LIVE facilitates primary distribution of finished and mastered content to partners for subsequent streaming to audiences.

BRIDGE LIVE can provide ABR ladder profiles or hand-off for OTT packaging. For example, encoding to H.264 or H.265 for hand-off with ABR ladder profiles, including pointing the ladder profile directly to a local packager or CDN.

Download Workflow

Annual Maintenance

BRIDGE LIVE optional annual maintenance package provides:

  • Software and Hardware Technical Support via Phone and/or Email.

  • Advanced Replacement.

  • All new software features, updates and bug fixes*.

  • Priority bug fixes and feature requests.

Optional Annual Maintenance for BRIDGE LIVE is $1995 MSRP.

*Critical bug fixes will be provided for all customers purchasing BRIDGE LIVE.

Industry-Leading Support

AJA’s support for BRIDGE LIVE starts with a generous three year hardware warranty and the optional yearly maintenance provides new software features and more.

AJA's technical support is recognized as among the best in the industry and together with support from Comprimato, BRIDGE LIVE customers have the best of both hardware and software expertise to ensure installations and projects are executed smoothly and with confidence.

AJA Support

AJA has unveiled BRIDGE LIVE, a powerful new plug-and-play streaming gateway solution that makes it easy to move UltraHD or multi-channel HD baseband SDI video to/from a wide range of streaming and contribution codecs (H.265, H.264, MPEG-2, and optional JPEG 2000).
Combining AJA’s production proven I/O technology with Comprimato’s powerful encoding/decoding/transcoding software, BRIDGE LIVE provides high quality, cost effective video processing, with SDI encode or decode for one channel of UltraHD up to 60p, or up to four channels of 1080 60p HD simultaneously, via four 12G-SDI connections that are also backward compatible to 6G, 3G, and 1.5G SDI.
Featuring deep metadata support, BRIDGE LIVE suits a range of professional and enterprise level video workflows with a 1RU profile that fits seamlessly into facility racks, production trucks, and flypacks.

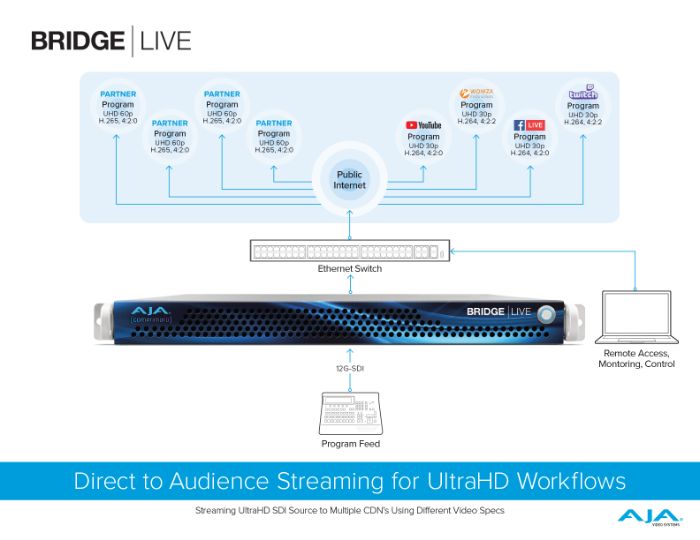

Live Direct-to-Audience Streaming
BRIDGE LIVE offers a comprehensive platform for live video streaming. Streaming support includes SRT, RTMP/S, RTP/UDP, and MPEG-TS. Using these standard protocols provides wide support for streaming services from Twitch, YouTube Live and Facebook Live. BRIDGE LIVE builds upon the tried and tested approach of AJA’s HELO streaming device, while including flexibility for multiple inputs, broad format and bit-rate support, as well as metadata and redundancy.
And, while streaming to CDNs for a direct-to-audience delivery, BRIDGE LIVE can simultaneously deliver different stream types to partners to re-transmit, transcode, or store.

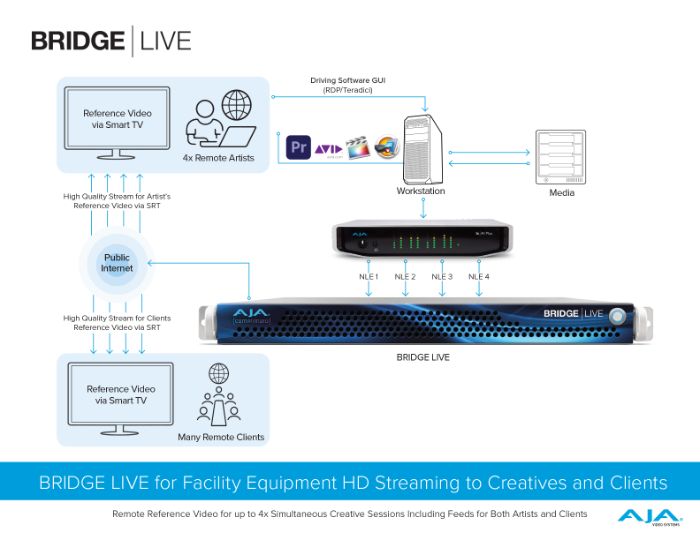

Reference Video for Remote Collaboration
Production and Post: Connecting remote artists and clients using reference quality video, or providing a high quality window into production for those who cannot be on-set.
BRIDGE LIVE means the flexibility to leave media and equipment at the secure, managed facility, and have creative talent work together remotely with reference quality video.
BRIDGE LIVE compliments existing GUI driving technologies (e.g. RDP, Teradici) by layering on the reference quality video needed for creative confidence and client/executive sign-off. Choices between H.265 (4:2:0, 10-bit), H.264 (4:2:2, 10-bit) with turnkey BRIDGE LIVE, or via optional license JPEG 2000 (4:2:2, 10-bit), mean there is choice and flexibility in how to approach your needs in terms of quality and latency.


SPECIFICATIONS

Video Formats

  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • YCbCr, 4:2:2, 10-bit

Video Codec Color Component Sampling

  • 4:2:2, 10-bit/8-bit
  • 4:2:0, 10-bit/8-bit

Video Codecs

  • H.264 (AVC, MPEG-4)
  • H.265 (HEVC)
  • JPEG 2000 (VSF TR 01)
  • MPEG-2

Audio Streams/Codecs

  • AAC
  • AC3
  • MPEG-2 Audio
  • Uncompressed PCM (multichannel), SMPTE 302M-2007

Metadata

  • Closed Captioning (EIA-608/708)
  • Line 21 Captions
  • Metadata pass-through
  • MPEG-2 ancillary packet support, SMPTE 2038
  • SCTE-35, SCTE-104 (plus conversion)
  • Subtitles embedded within H.264 SEI messages
  • Electronic program guide (EPG) on input

Containers and Protocols

  • MPEG-TS
  • MPTS (input only)
  • RTMP/RTMPS
  • RTP, UDP
  • SRT (including encryption)
  • VSF-TR01

Video Processing

  • Auto Color Component Sampling based on I/O settings
  • Cropping / Padding
  • Color adjustments
  • Deinterlacing
  • Frame rate 50% down-conversion (60p->30p, 59.94->29.97, 50p->25p)
  • Frame rate up-conversion (50i->50p)
  • Logo insertion
  • Resizing

Audio Processing

  • Channel Remapping
  • Gain
  • Sample Rate conversion

Synchronization

  • Input PCR
    • Global configuration (in separate transport stream)
    • Local configuration (in each transport stream)
  • Output PTS
    • Pass-through
    • Add offset to input PTS

Performance

  • Stream startup time maximum 5 seconds after configuration applied
  • Latency 200-700ms input to output (based on codec and other parameters)
  • Up to 4 simultaneous primary HD streams, plus additional output variations per stream*
  • Up to 1 primary UHD stream, plus additional output variations of that stream*

*Final additional stream count per output is dependent on configuration

Video Input Digital

  • 12G-SDI, SMPTE-2082, 10-bit
  • 6G-SDI*, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE-259/292/296/424/425, 10-bit
  • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit
  • 270 Mbit/s SDI, SMPTE 259M-C, Single Link 4:2:2 (1x BNC), 10-bit

*UltraHD 30p supported, no HD 120p support at this time

Video Output Digital

  • 12G-SDI, SMPTE-2082, 10-bit
  • 6G-SDI*, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE-259/292/296/424, 10-bit
  • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit
  • 270 Mbit/s SDI, SMPTE 259M-C, Single Link 4:2:2 (1x BNC), 10-bit

*UltraHD 30p supported, no HD 120p support at this time

Audio Input Digital

  • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection

Audio Output Digital

  • 16-channel, 16 and 24-bit SDI embedded audio, 48 kHz sample rate, synchronous per SDI connection

Configuration and Monitoring

  • Local “Kiosk” interface (keyboard, mouse and monitor)
  • Remote access via Browser
  • REST API
  • SNMP

Form Factor

  • 1RU turnkey system
  • 4x full size BNC (12G/6G/3G/1.5G-SDI compatible)
  • 2x 10GigE
  • Local interface via Display Port and USB
  • OS custom image
  • Updates and licenses via download

Size (w x d x h)

  • 17.2” x 16.9" x 1.7" (436.88 x 429.26 x 43.18 mm)

Weight

  • 28 lb. (12.7kg) in box
  • 18 lb. (8.2kg) server only

Power

  • 100-240 VAC 50/60 Hz (Dual, redundant power supplies)
  • 190W typical, 245W Maximum

Environment

  • Safe Operating Temperature: 5 to 35 C (41 to 95 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 8-90% noncondensing
  • Nonoperating Relative Humidity: 5-95% noncondensing
